Product Code: OPSL16
Specifications:

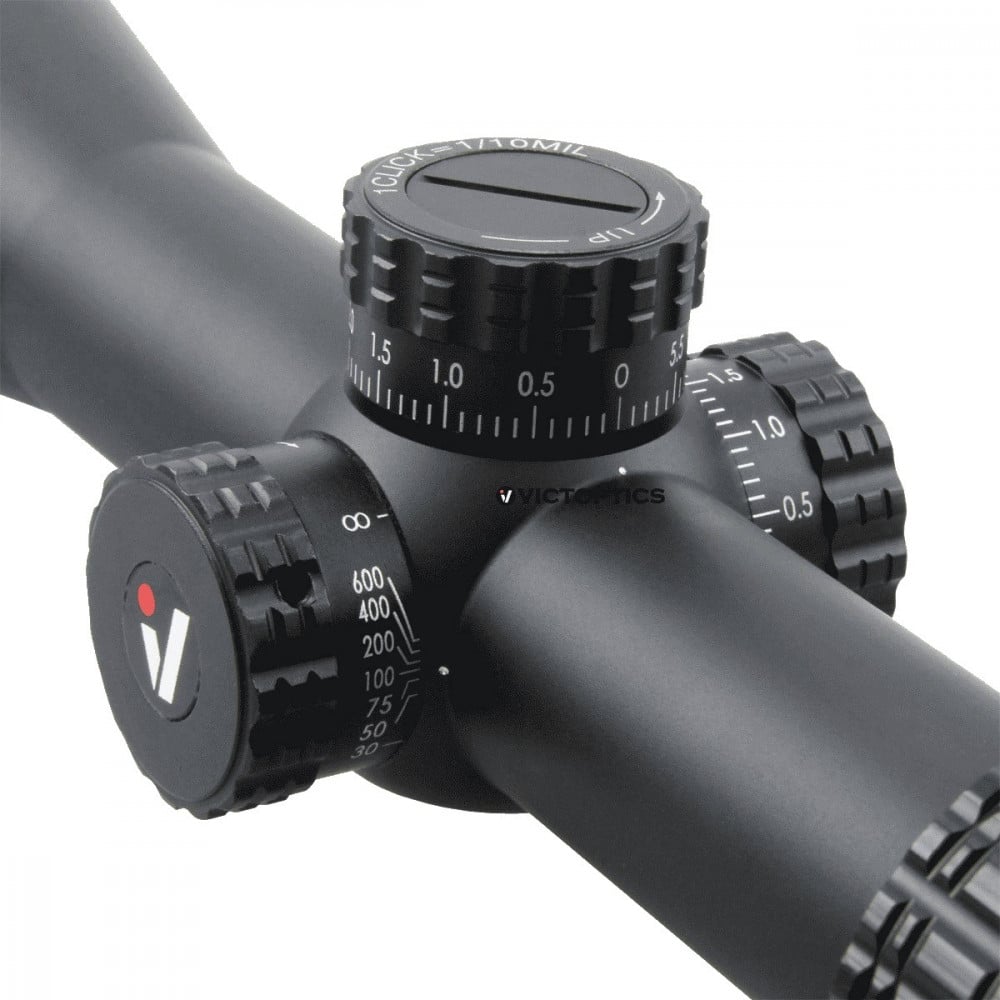

- Edge-to-edge images with crystal clarity , 1/10 mil adjustment with turret lock.

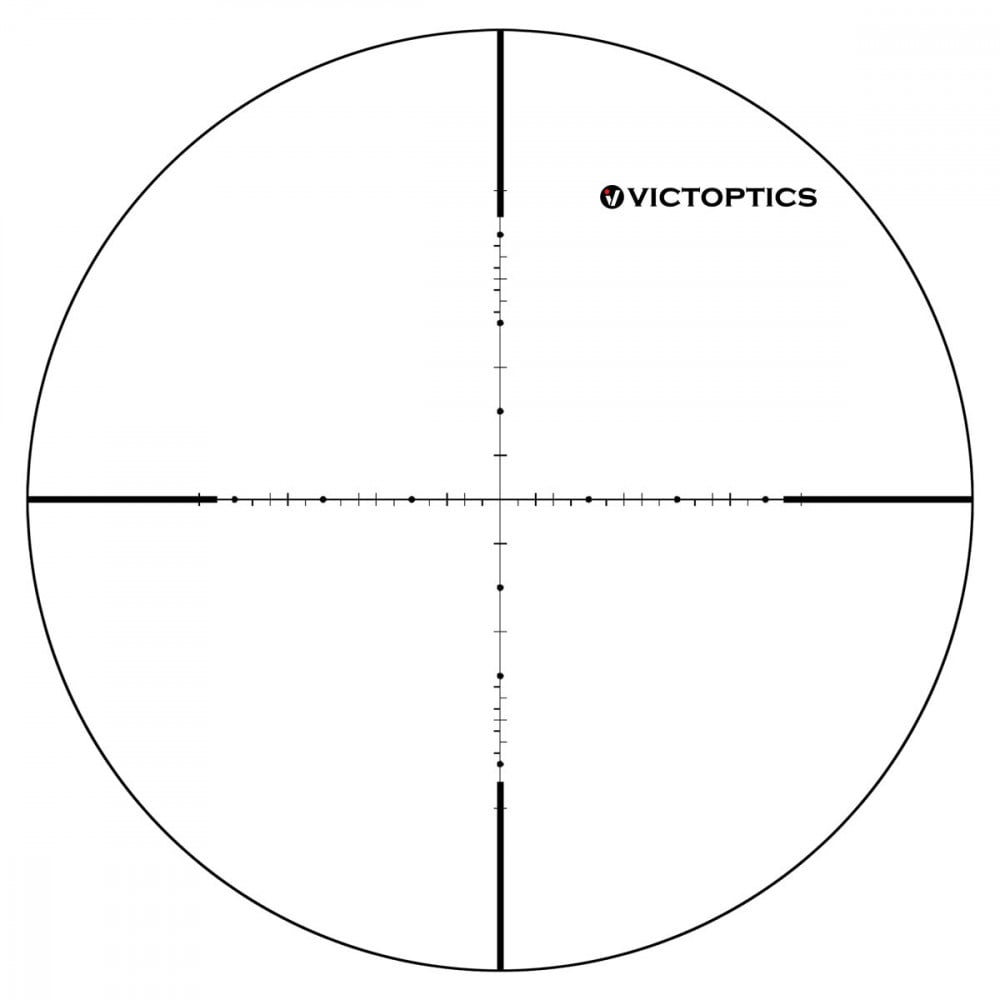

- WDL reticle used at 10x magnification , a patented reticle specifically designed for airguns and firearms.
- Long viewing distance , 30mm single tube, wide field of view, side focus starting at 15 yards, power ring mount.
Technical details:
- Magnification : 4-16x
- Objective lens diameter : 44 mm
- Focal plane : second focal plane
- Eye distance : 96mm / 3.8in
- Exit pupil : 11.0-2.75 mm
- Lens coating : Fully multi-coated
- Linear field of view at 100 yards : 28.8-7.2 feet/100 yards
- Linear field of view at 100 meters : 9.6-2.4 meters/100 meters
- Angular field of view : 5.5-1.4°
- Network : MDL wired network
Structure:
- Tube diameter : 30 mm
- Side Focus : 15 yards to infinity
- Click value : 1/10 mile
- Tower function : Tower lock
- Altitude adjustment range : 15 miles
- Wind setting range : 15 miles
- Diopter compensation : -2 to +2
- Lighting settings : Not available
- Battery type : CR2032
- Water resistant : IPX4
- Fog-proof : Nitrogen-filled
- Shock resistant : 750g
- Frame material : 6061-T6 aluminum alloy
- Finish : Matte Black
- Length : 315 mm / 12.4 inches
- Weight (Net) : 515g / 18.2oz
Package Contents:
- Pair of 30mm diameter scoop weaver rings
- Power Ring Holder
- 3 inch sun visor
- cleaning cloth
- User Guide
- Foldable lens covers
One year warranty against manufacturing defects
Terms and conditions of warranty for binoculars
Dear customer, before purchasing, please read the warranty terms carefully.
The warranty covers any manufacturing defects in the binoculars, such as lens fogging, lens clarity distortion, problems with the calipers, dust inside the lenses, or filtration problems.
The scope is considered out of warranty in the following cases:
· Problems resulting from excessive tension on the bases other than the manufacturer’s recommendation (16 to 18 maximum).
· There is a dent in the endoscope tube.
· Tower breakage due to attempt to unlock while locking.
Scratches or traces of disassembly of the mechanical parts of the scope are not covered by the warranty.
In case of clouding or blurring, the scope is compared to a similar new or almost new scope.
In the event of a complaint about a difference in weight or recoil, the product is subjected to a special test using a device that zeroes the scope, then exposes it to a strong recoil, and then compares the mesh before and after the recoil. If there is a difference, it is a manufacturing defect. If there is no difference, the product is considered intact regardless of the customer’s complaint, and the presence of a defect in the scope is ruled out.
In the event of any complaint regarding the endoscope, it will undergo a technical examination to determine the nature of the problem within a maximum of 15 to 30 days. A 100 riyal examination fee will be paid, which will be refunded if a manufacturing defect is proven, and the endoscope will be replaced with a similar or equivalent product if the same product is not available.
Please review the full warranty, exchange and return terms before completing your purchase.
